Brush Guard Install on
SandmanAV's AV
10/5/2002
SandmanAV on the CAFCNA board got a new brushguard. He asked me to help him install it. Here are the pics of what we came up with...
The directions say to measure 16-13/16" out from center, but you should doublecheck the stud spacing on the actual brush guard. We had to "widen" the passenger side hole to accept the brush guard and to be on center....
Page Best Viewed with 800x600 or higher Resolution
|

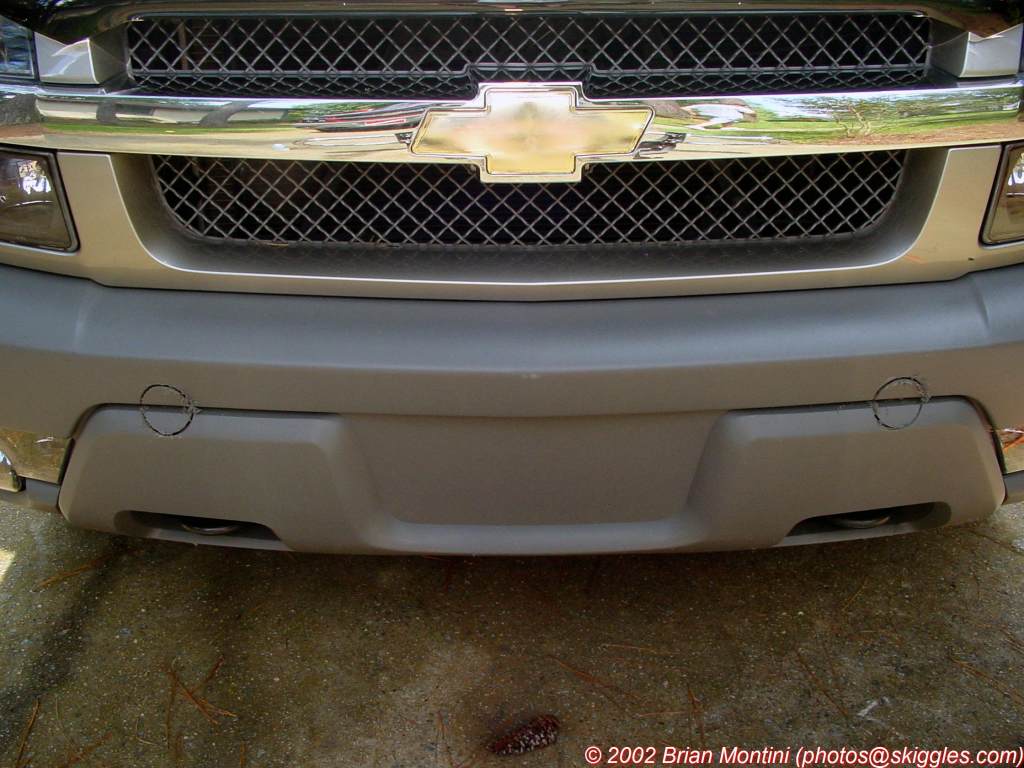

Marked with 1/8" drill bit, Ready to Drill 2-1/2" hole!! |

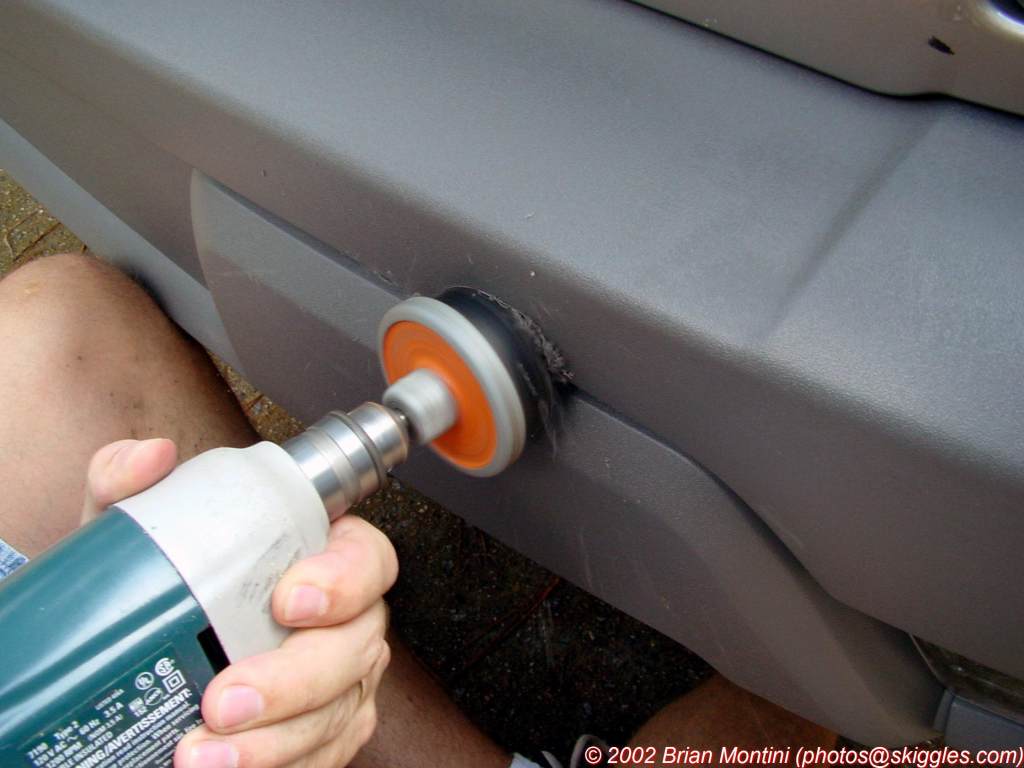

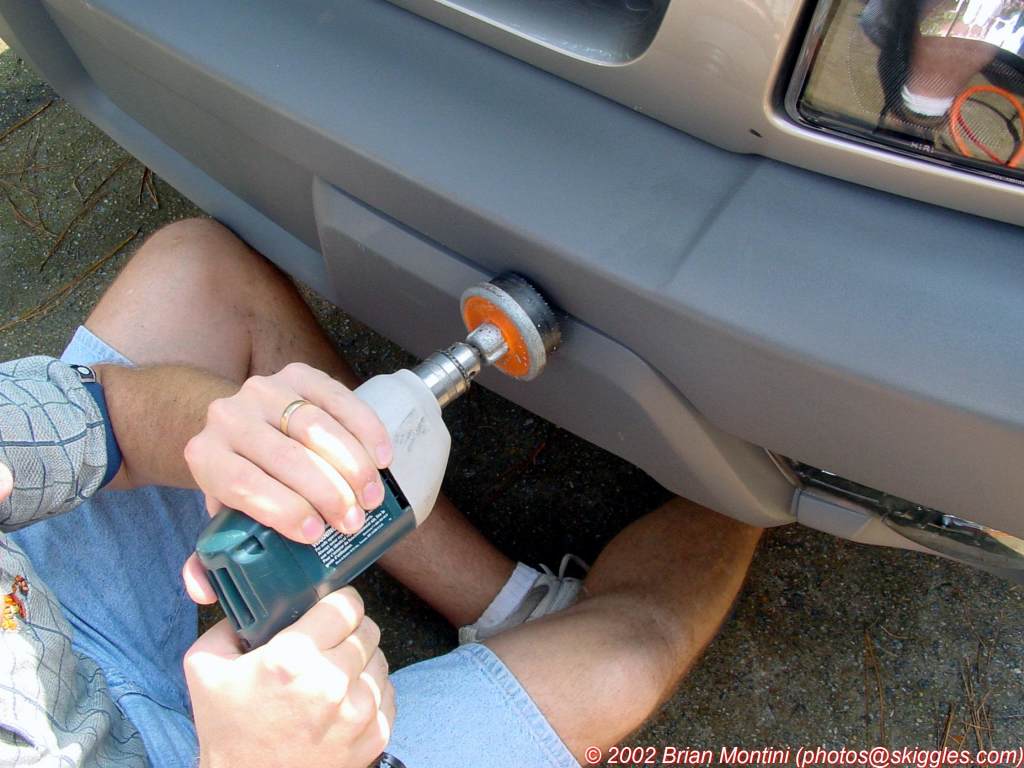

Drilling!! |

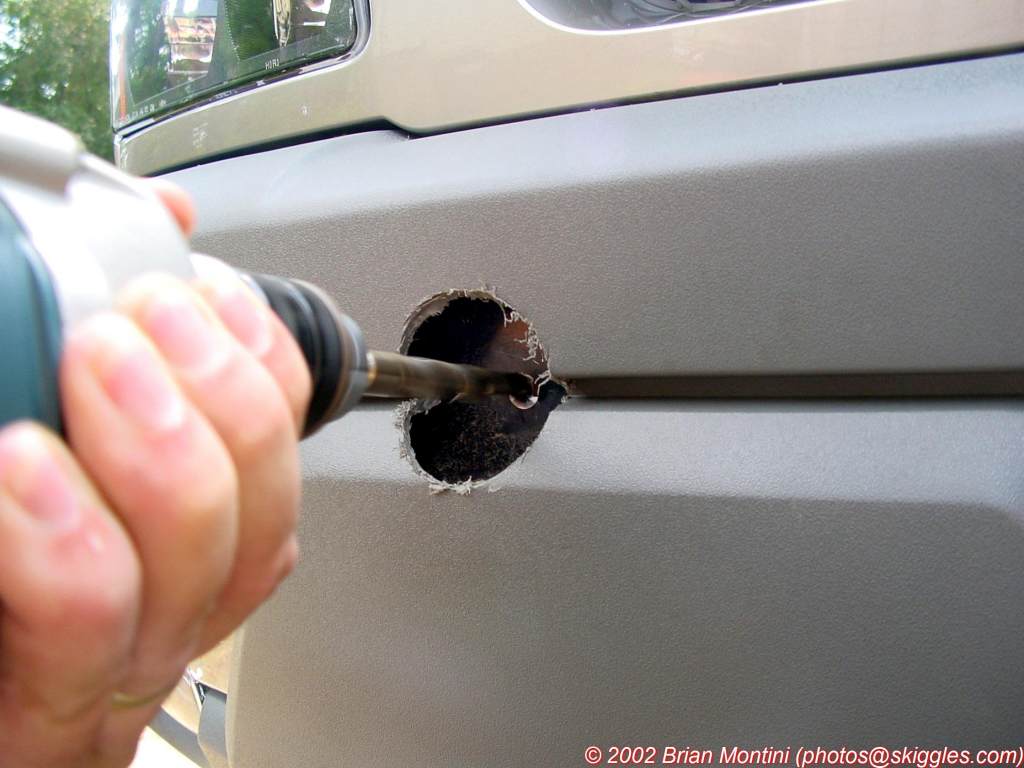

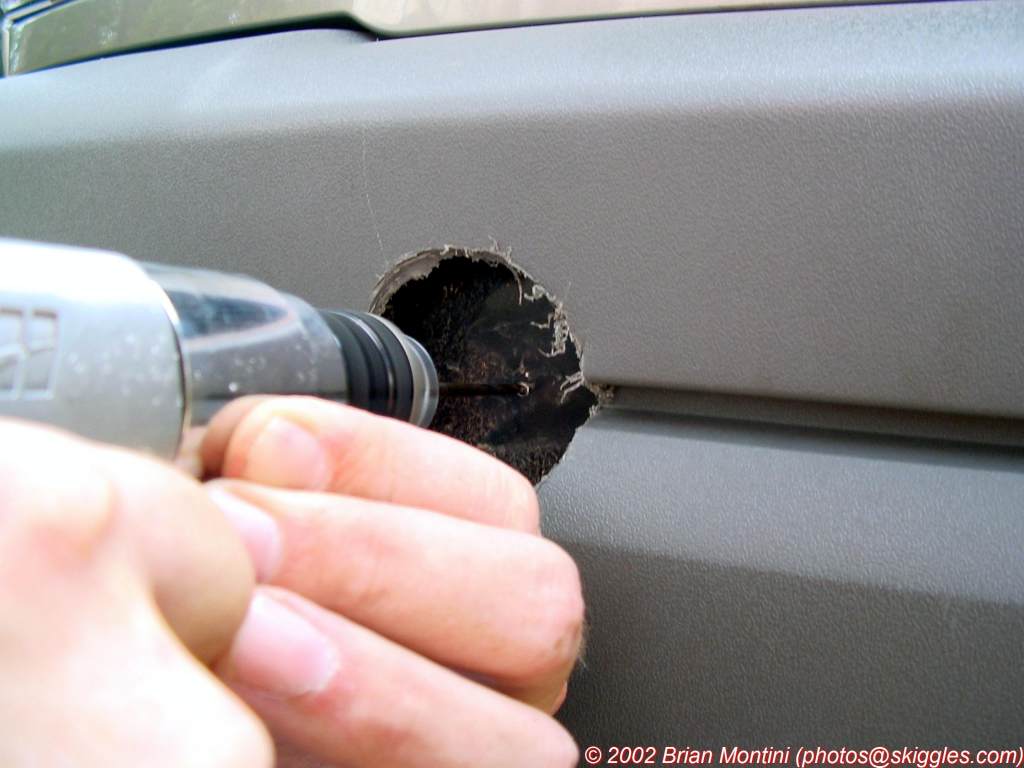

Hole saw wasn't deep enough, had to cut out some of the plastic to remove the pieces |
|
Pre-drilling 1/8" hole in metal plate |
Drilling 1/2" hole in metal plate |

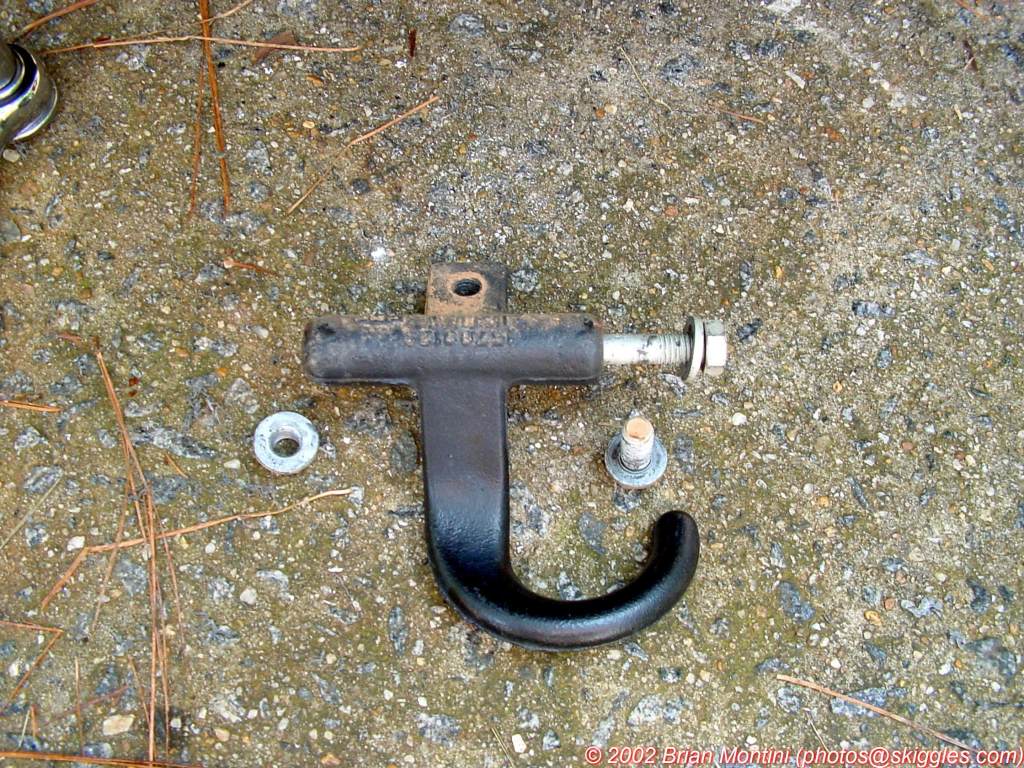

Removed Tow Hooks |
|

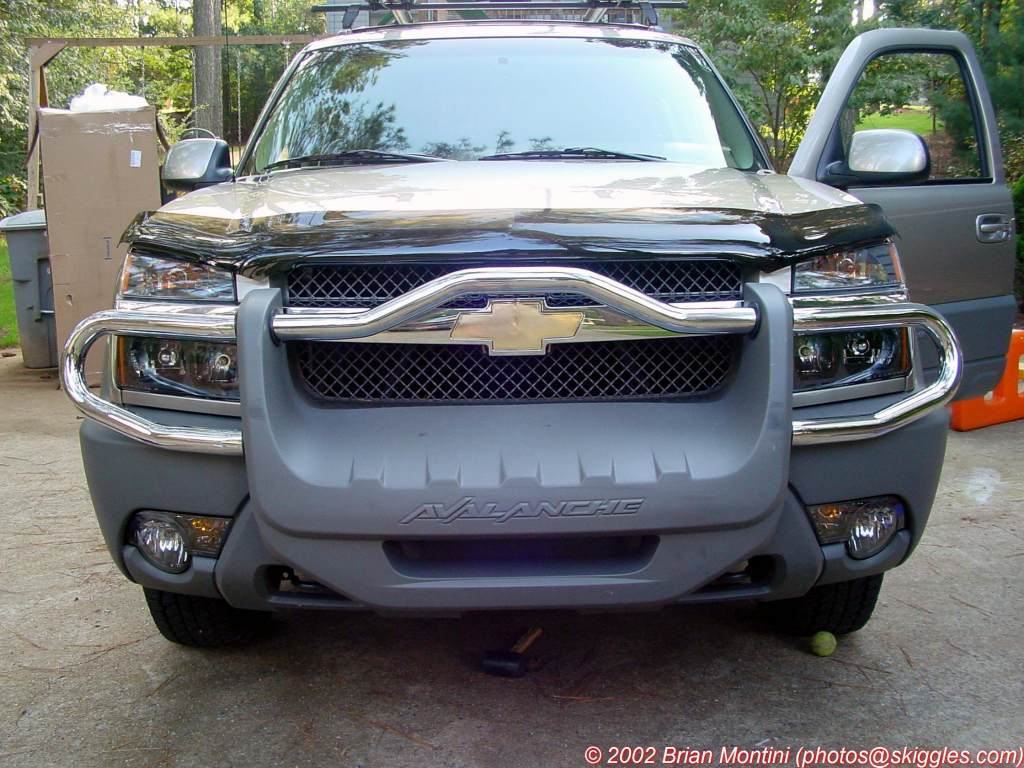

Installed!! |

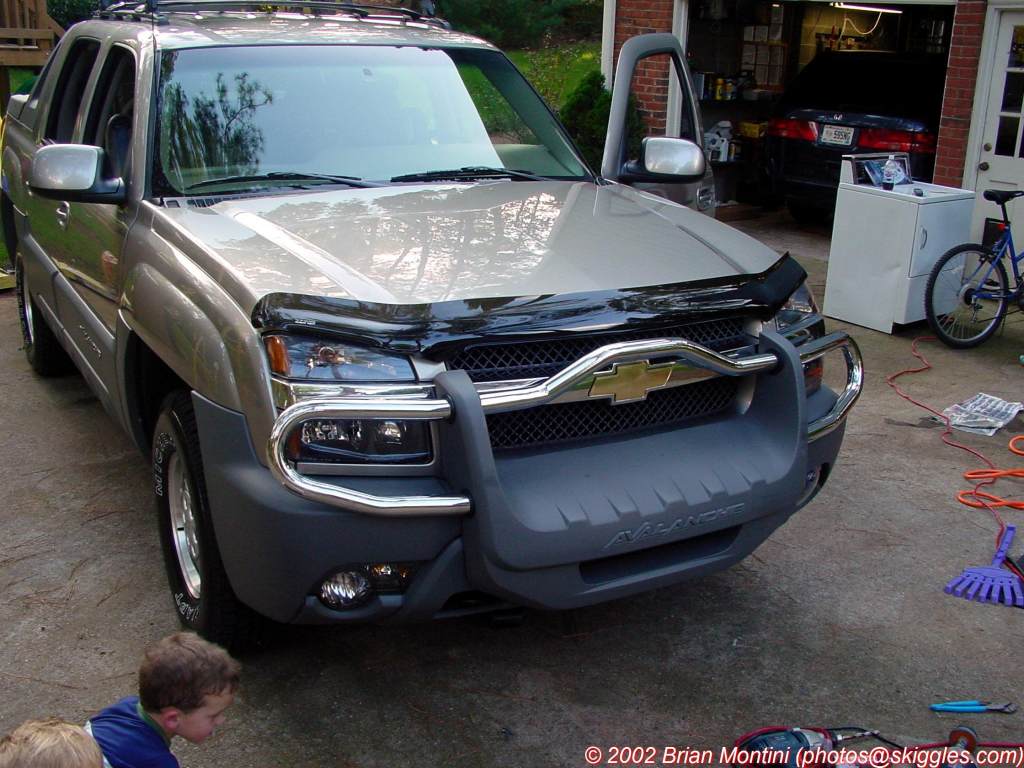

Installed!! |
