Reverse Indiglo Gauge Install
09/28/2002
I posted a question on the CAFCNA board a while ago about this product. After hearing some feedback from other members, I ordered mine and installed them. Here are the install photos so that it may help others out there...
I WAS able to install this guage package without removing the needles. I started by setting the gauge overlay over the Trip Odometer reset button. Starting with the overlay rotated about 30 degrees clockwise from the first picture below
I positioned the speedo and tach gauges pointing up and the 4 other gauges pointed down. I rotated the overlay under the Speedo and kept putting the next needle under as it came under the hole. It got a little tight before it snapped into its final place.
Page Best Viewed with 800x600 or higher Resolution
|

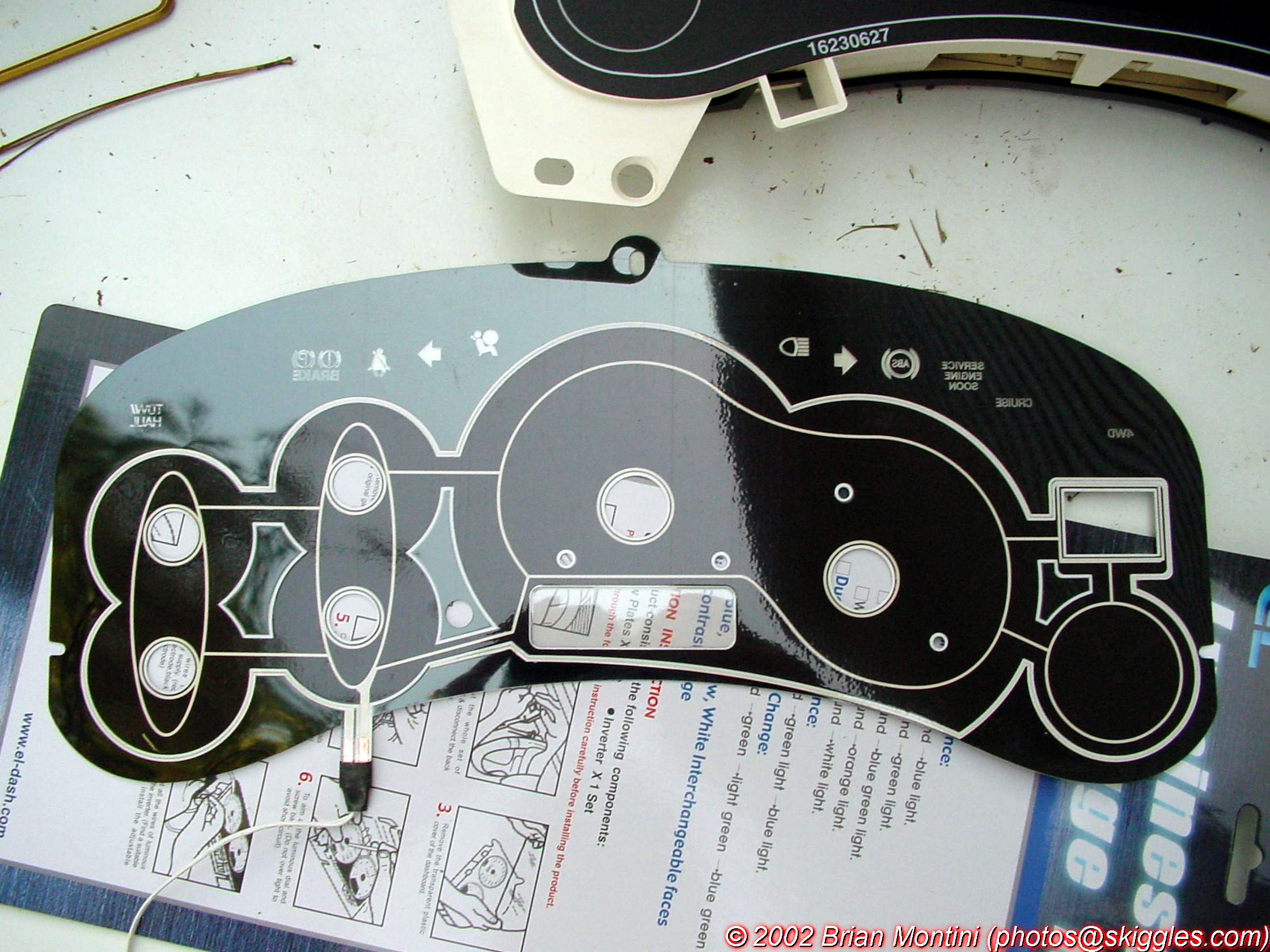

Back of Indiglo Gauges |
Message Center
& Top Cut Out |

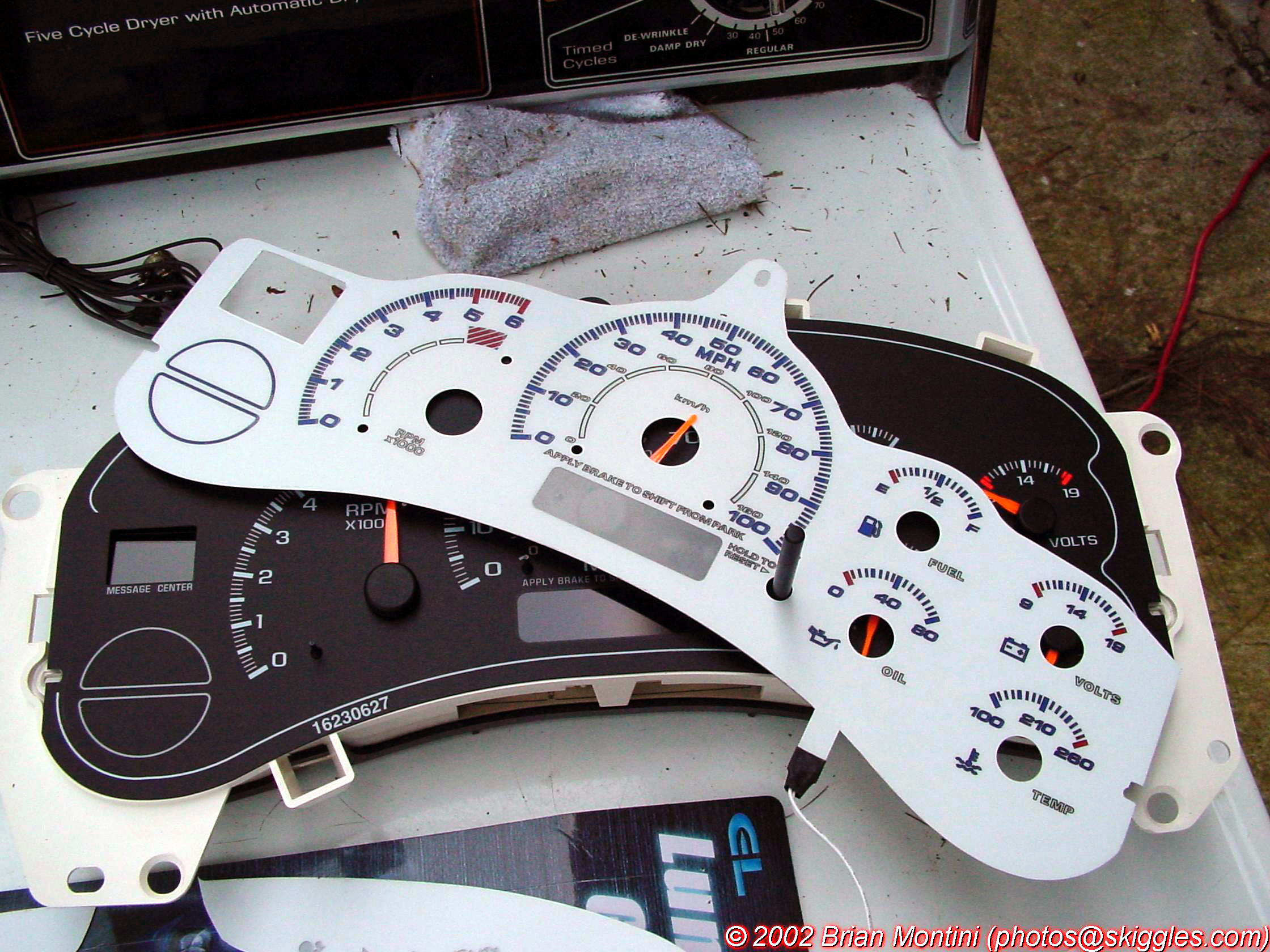

Twisting gauge
face onto/over needles |
|

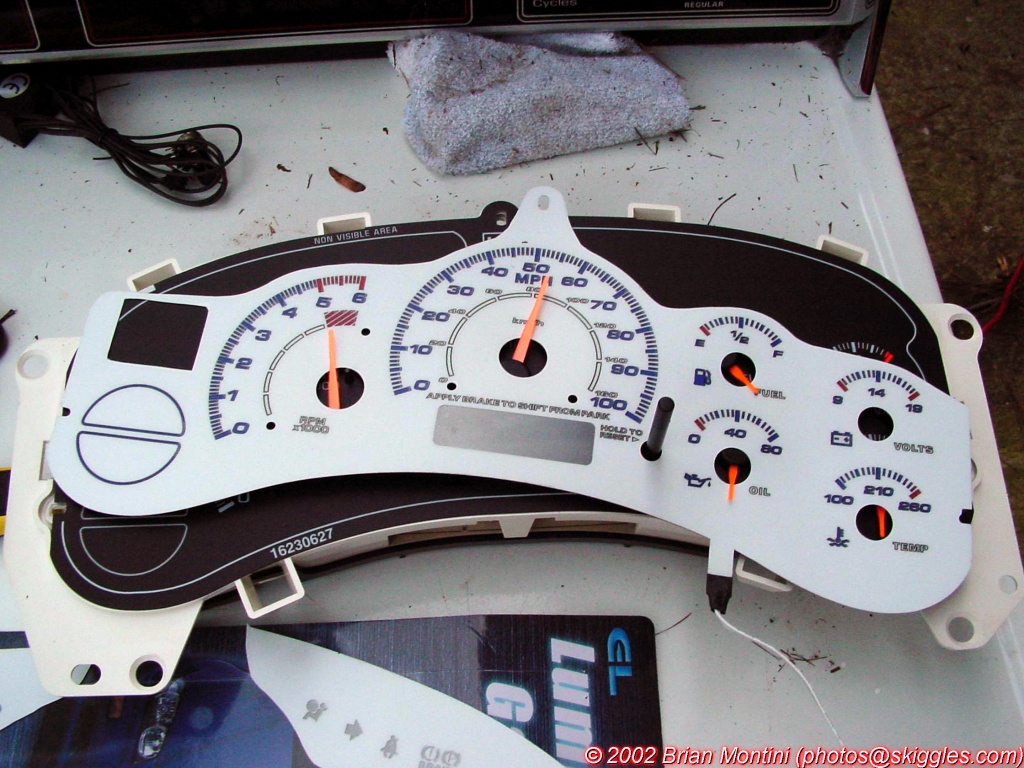

Twisting gauge
face onto/over needles.. Slowly... |

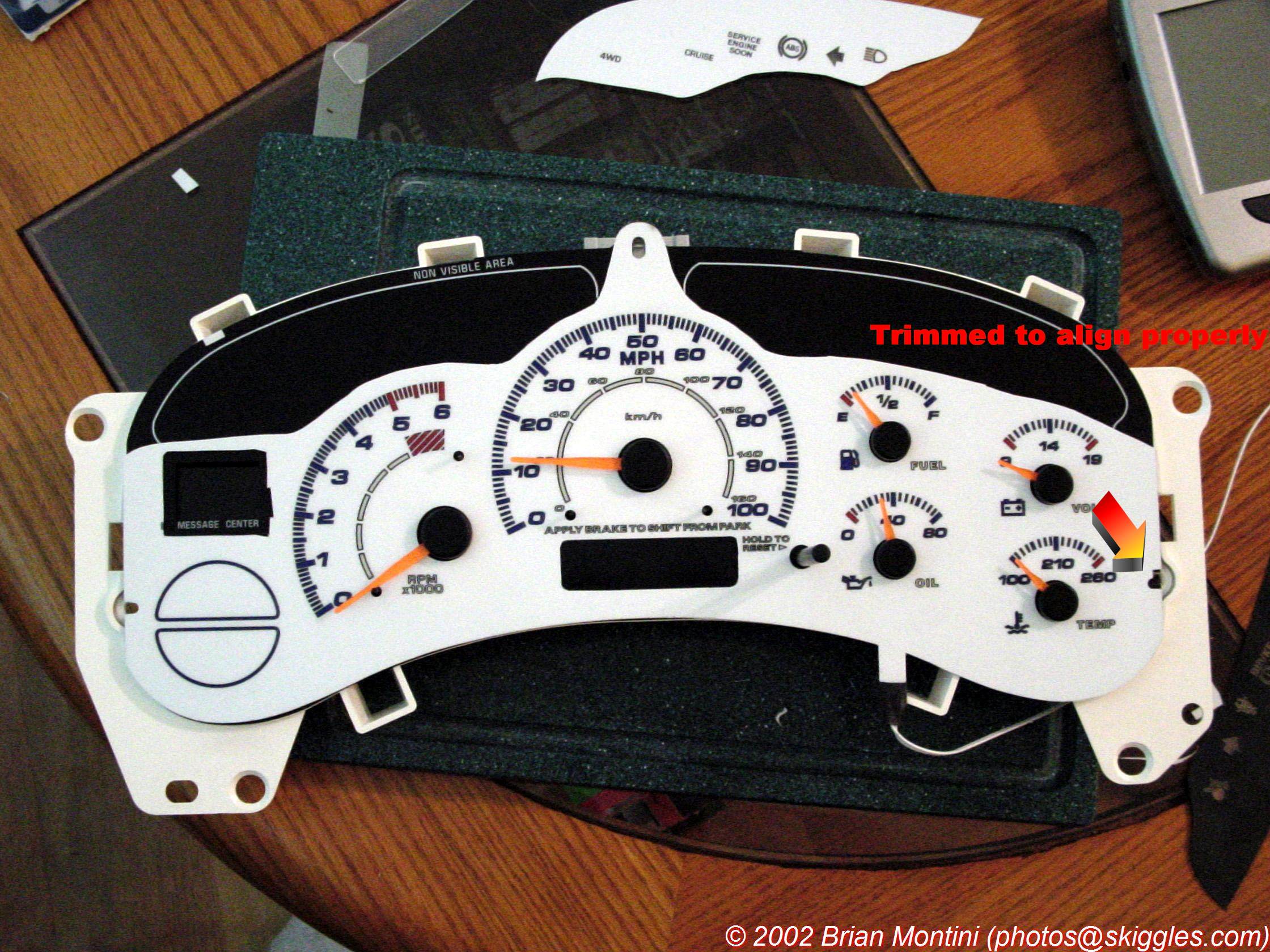

There... got it |

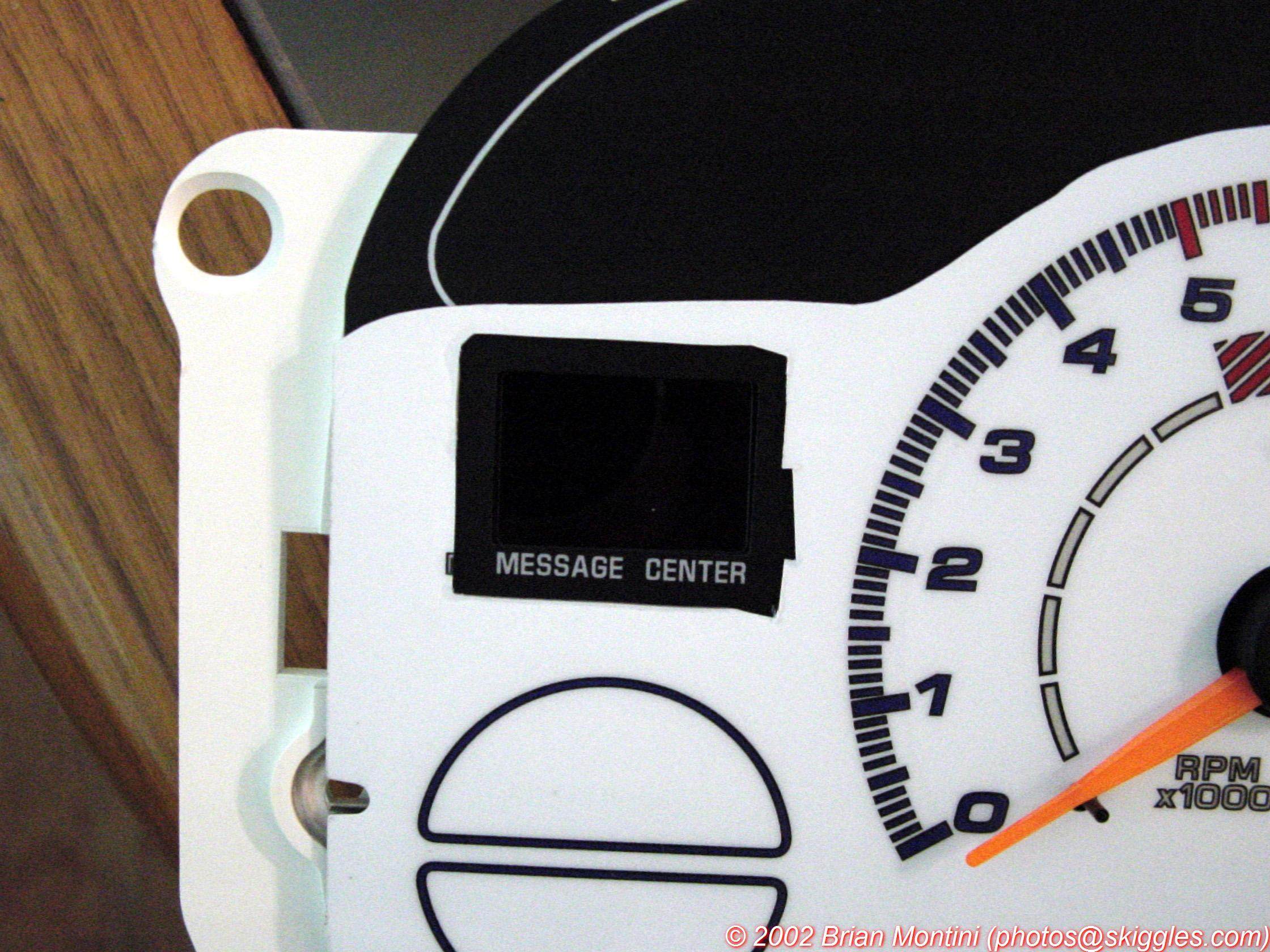

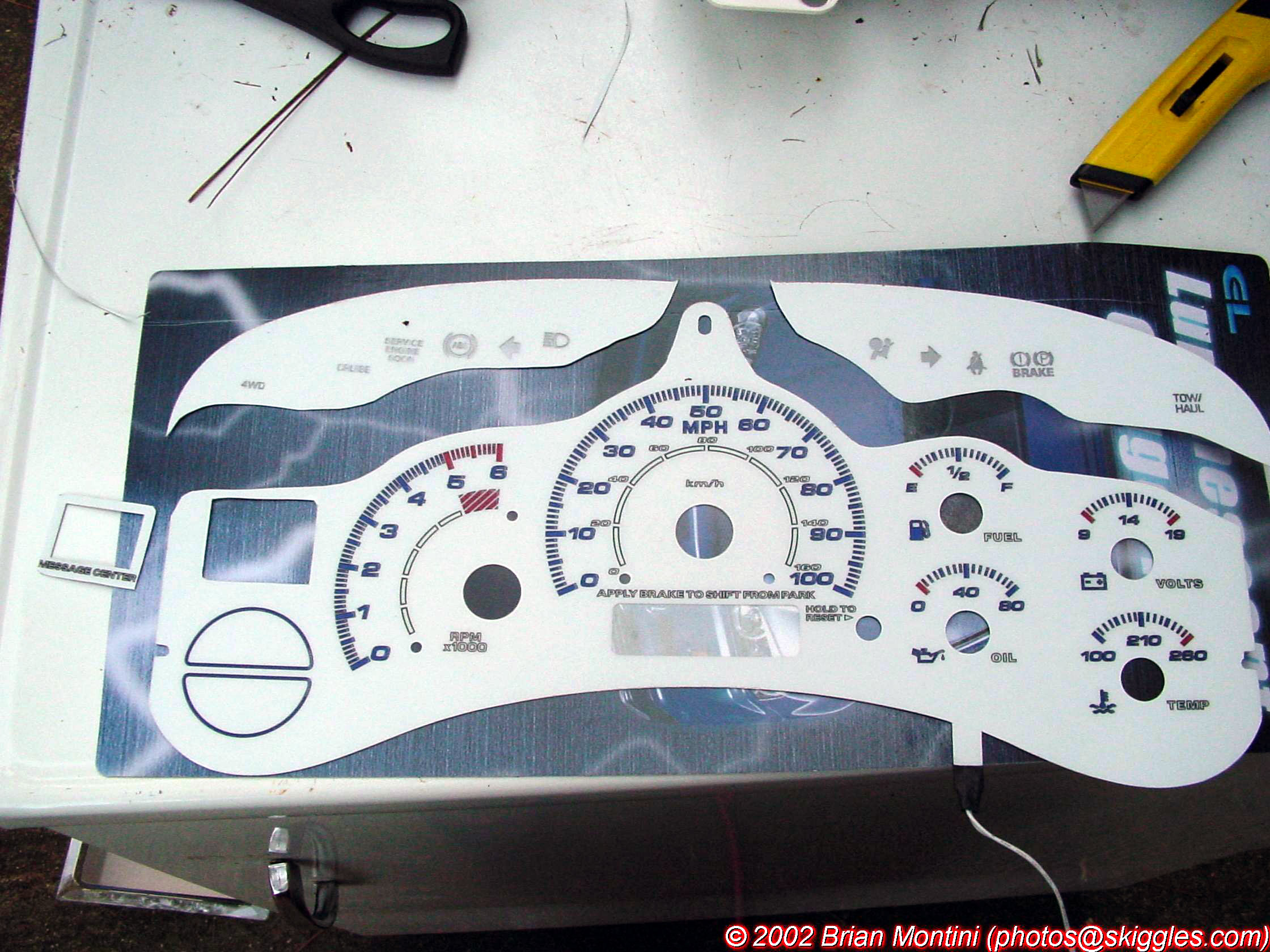

Message Center
Cut Out |
|

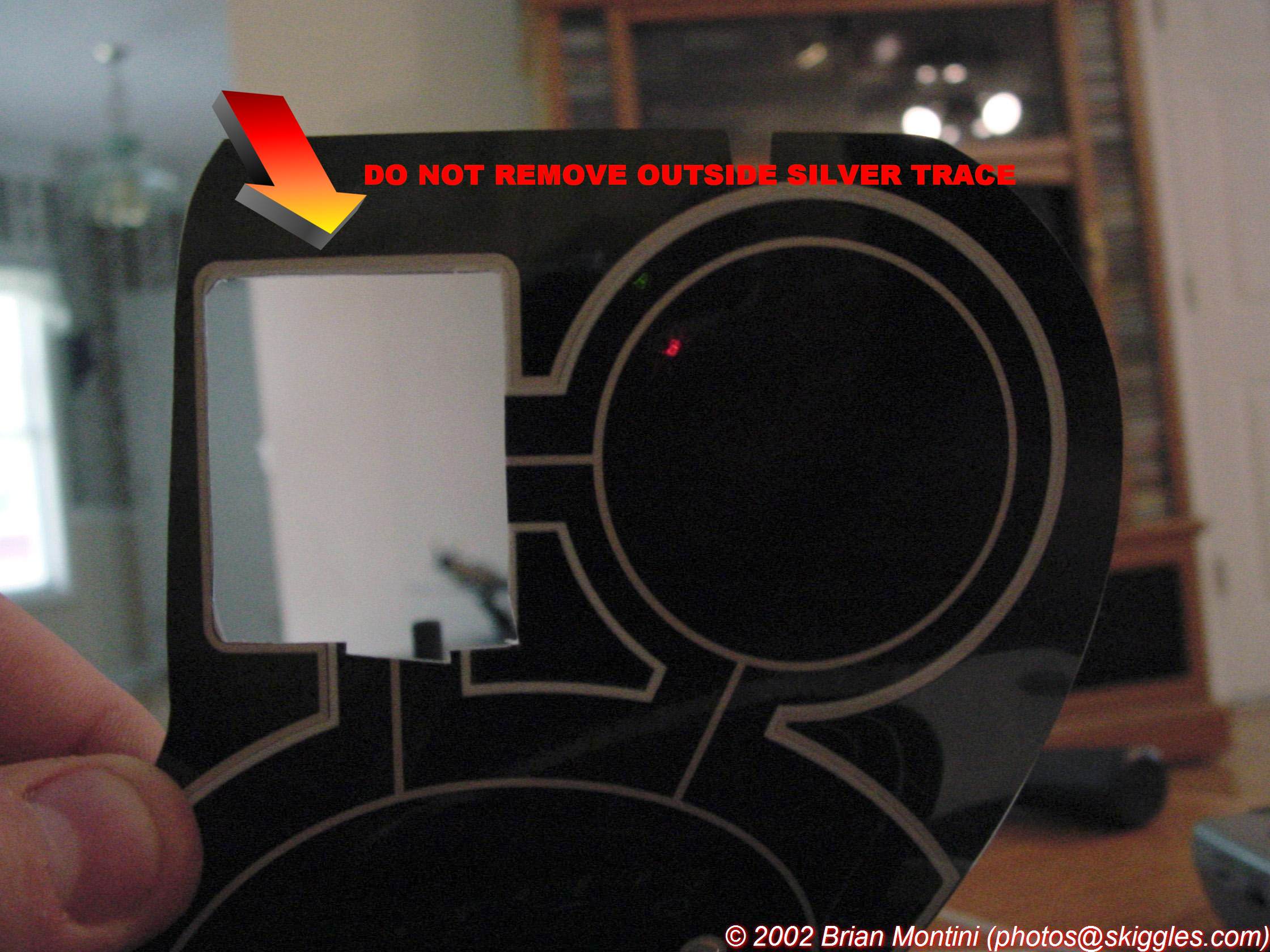

Back side of
Message Center Cut out. Note that the outer silver trace is not cut |

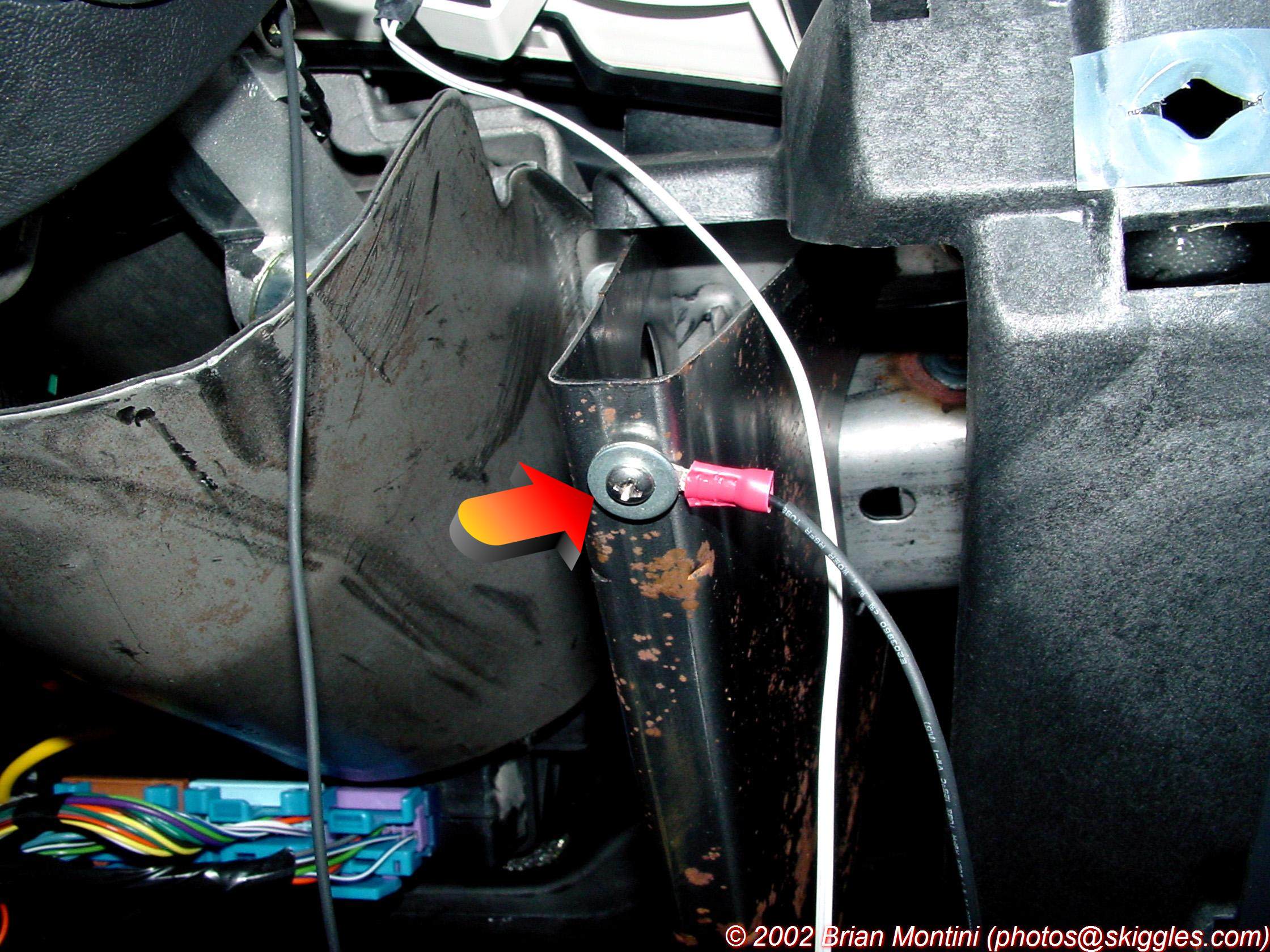

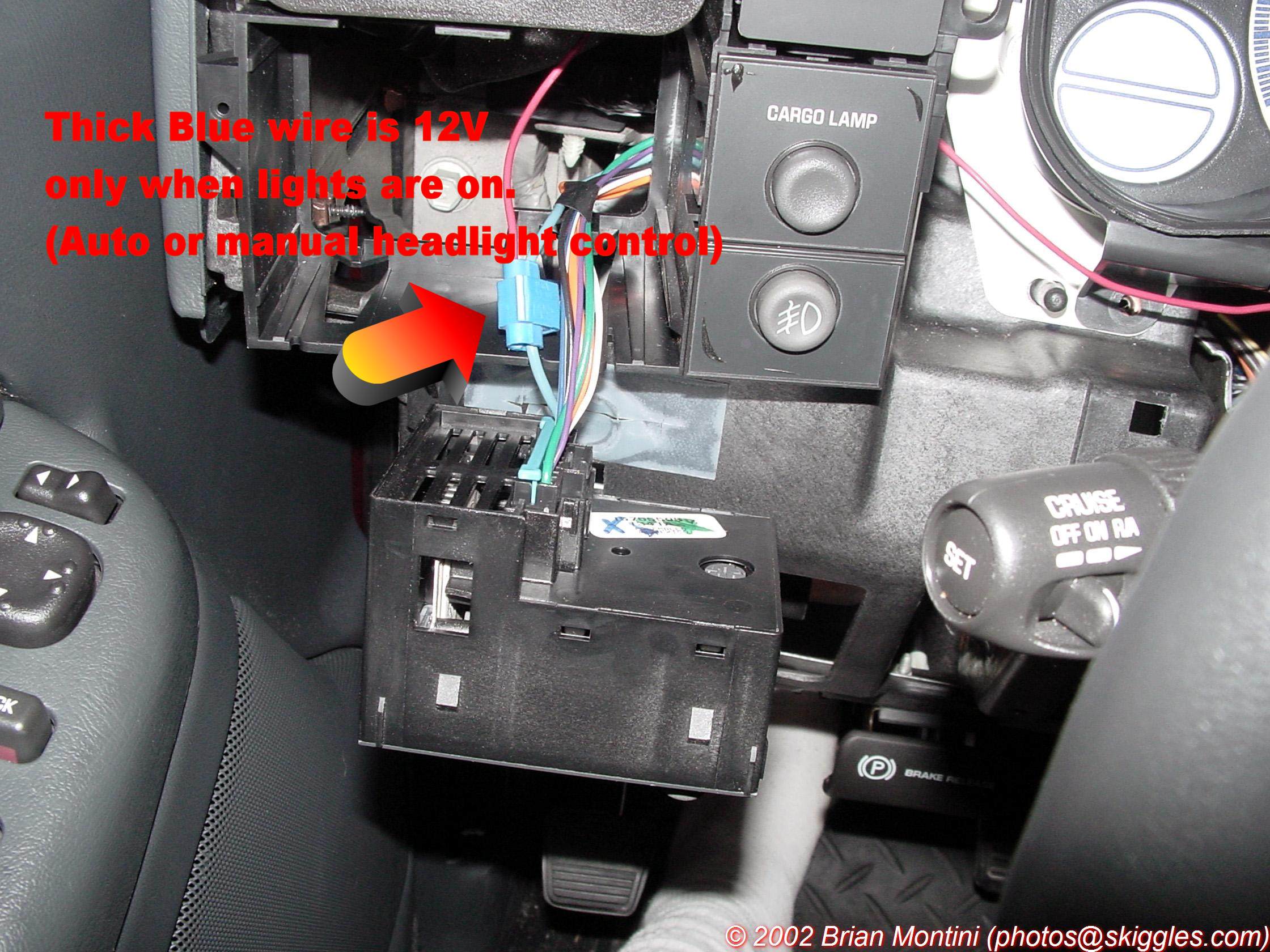

12V Hookup |
GND hookup |
|
Gauges installed |

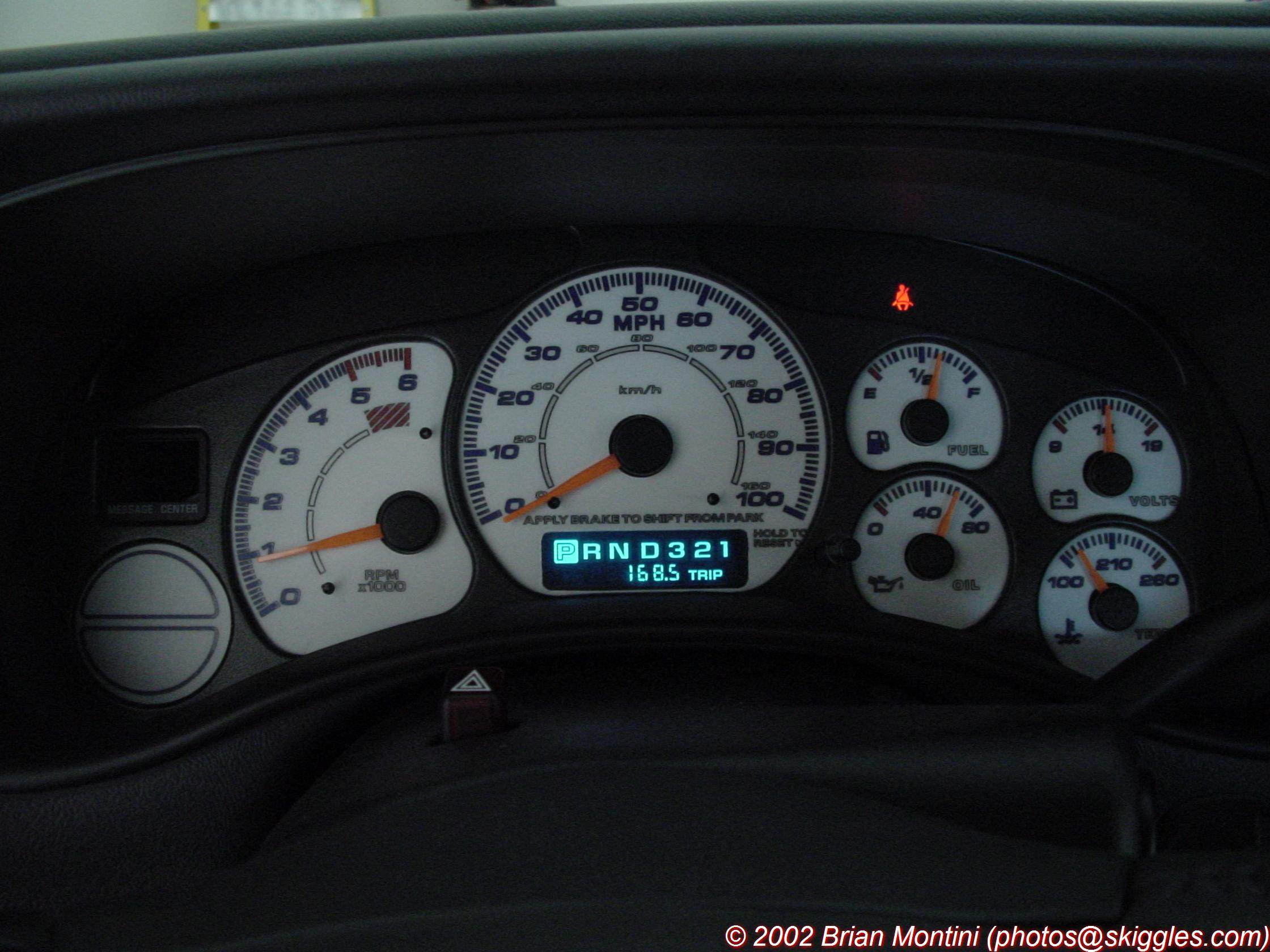

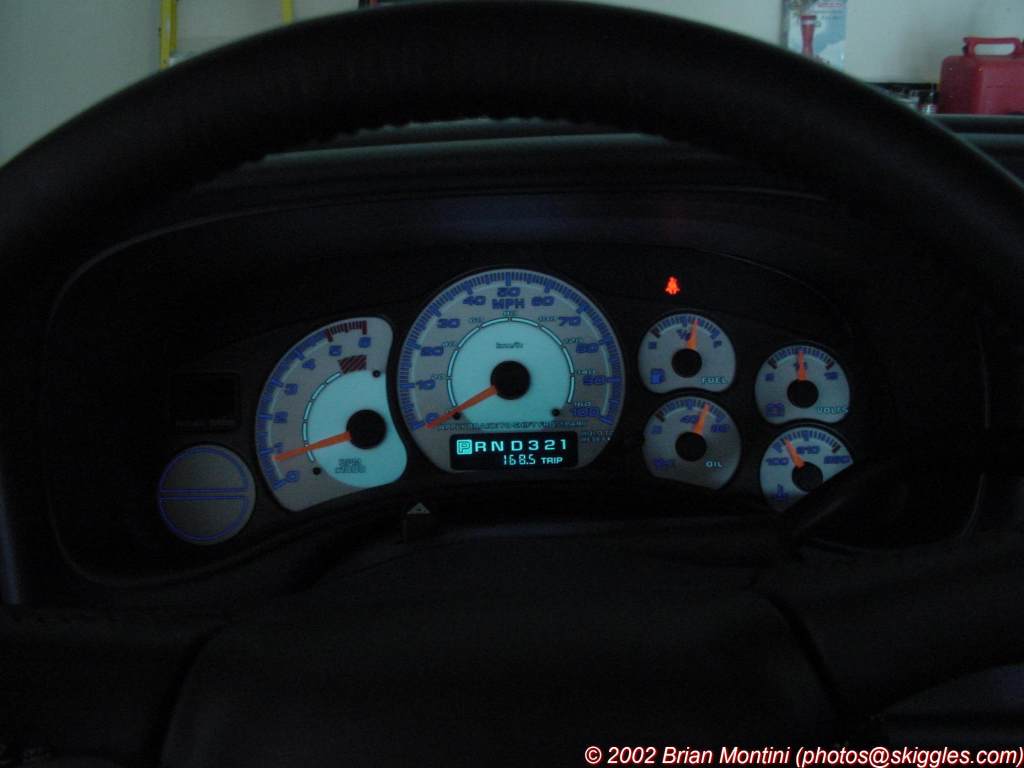

Gauges installed,
indiglo on |

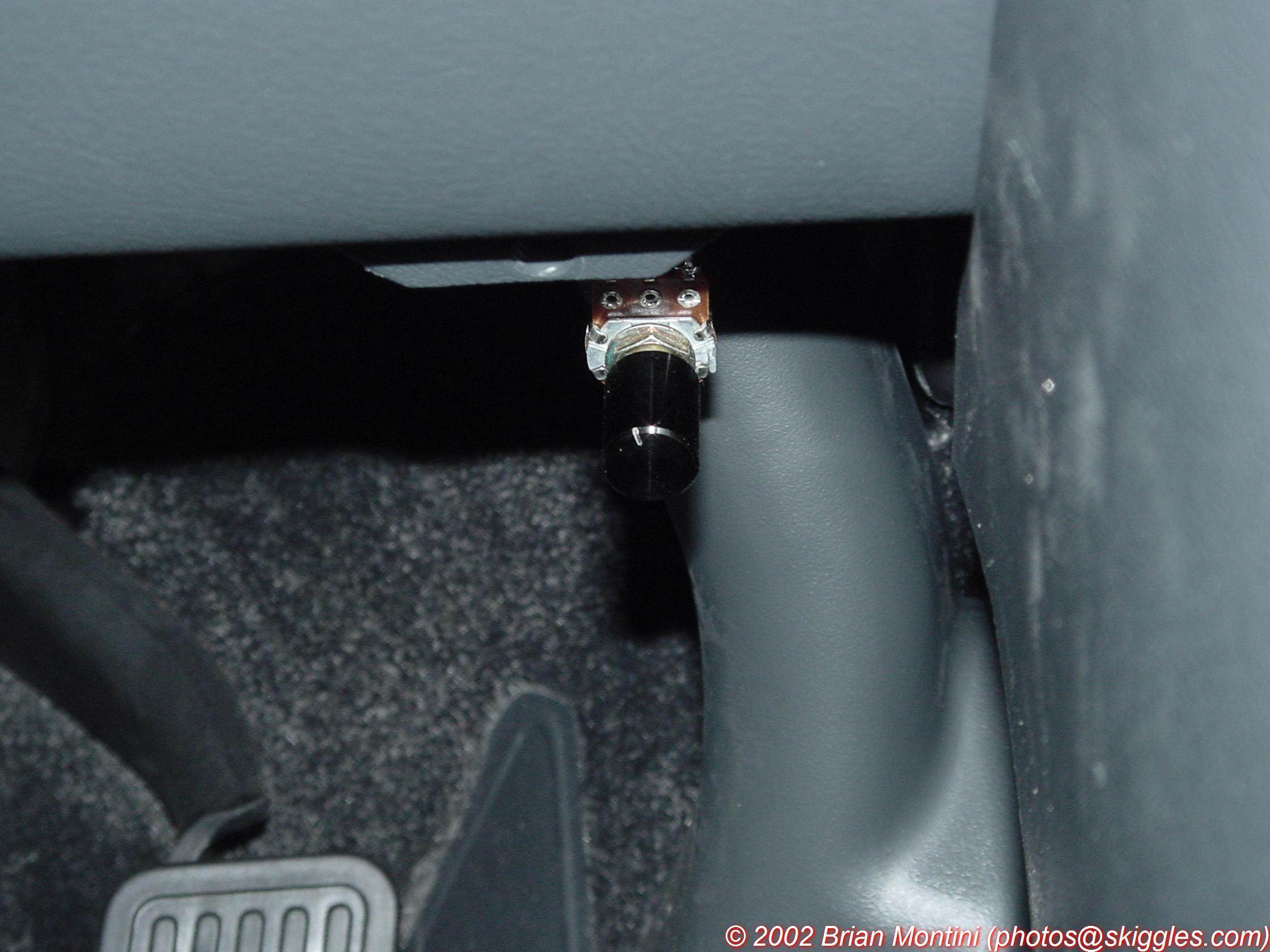

Dimmer Control |
|

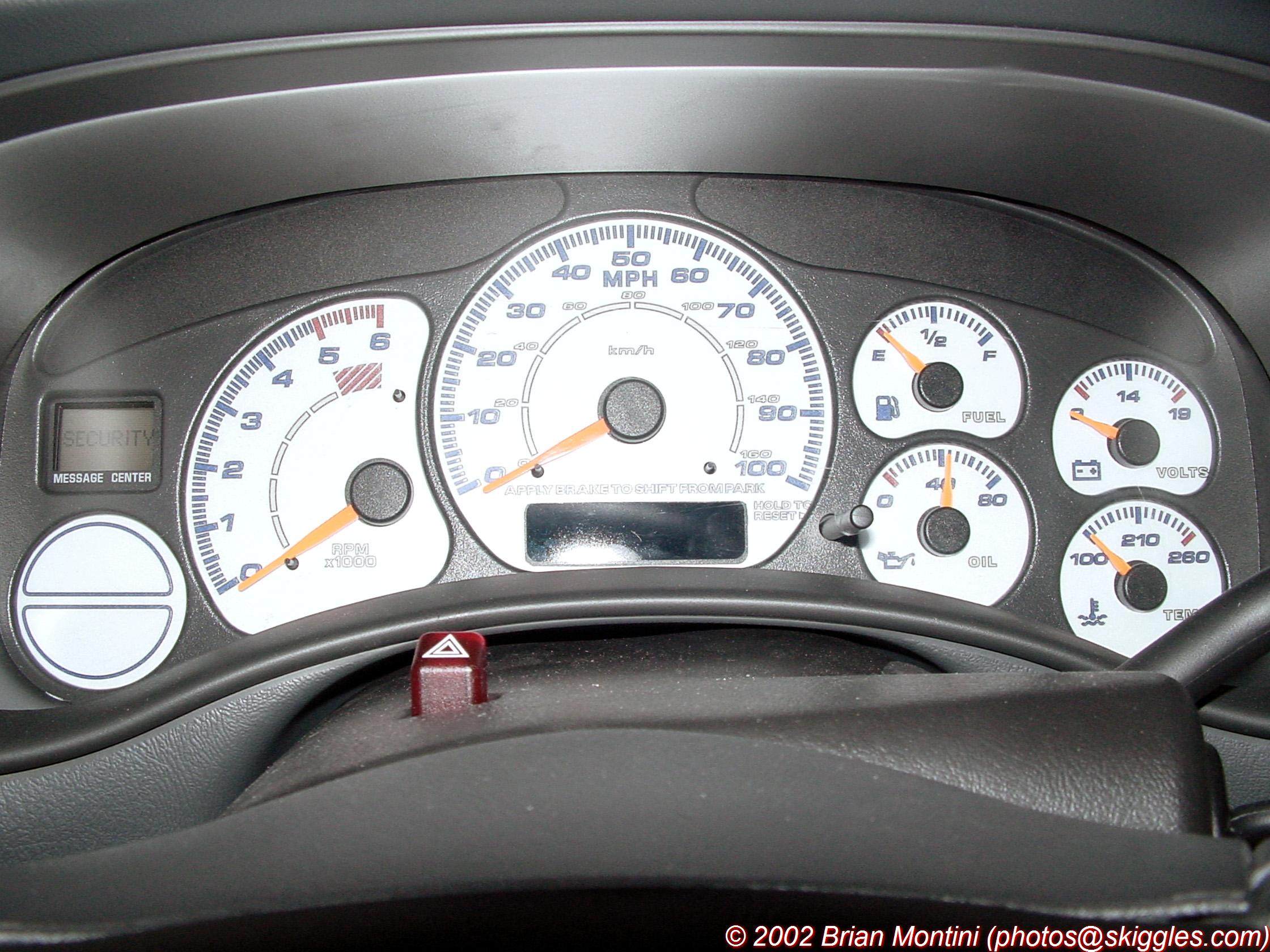

Guages w/ Flash |
